Platinum-Free Catalysts Could Make Cheaper Hydrogen Fuel Cells

By May 21, 2020 7   min read  (1261 words)

May 21, 2020 |

Argonne National Lab 1

Researchers are increasingly looking to hydrogen fuel cell systems as alternate power sources for vehicles and other applications due to their fast refueling time, high energy density and lack of harmful emissions or byproducts.

Scientists at the U.S. Department of Energy’s (DOE) Argonne National Laboratory have recently developed and studied fuel cell catalysts — chemicals that speed up important fuel cell reactions — that don’t use platinum. The research provides better understanding of the mechanisms that make these catalysts effective, and the new insights could help inform the production of even more efficient and cost-effective catalysts.

“We observed the process in real time at the atomic scale to gain understanding and to inform the design of better-performing catalysts.” — Deborah Myers, senior chemist and leader of the Hydrogen and Fuel Cell Materials group in Argonne’s Chemical Sciences and Engineering (CSE) division

Commercially available hydrogen fuel cells rely on the oxygen reduction reaction (ORR), which splits oxygen molecules into oxygen ions and combines them with protons to form water. The reaction is part of the overall fuel cell process that converts hydrogen and oxygen in air into water and electricity. The ORR is a relatively slow reaction, limiting fuel cell efficiency and requiring a large amount of platinum catalyst.

“Currently, the oxygen reduction reaction is facilitated by platinum alloy catalysts, which are the most expensive component of the fuel cell electrodes,” said Deborah Myers, a senior chemist and the leader of the Hydrogen and Fuel Cell Materials group in Argonne’s Chemical Sciences and Engineering (CSE) division. “Widespread, sustainable commercialization of fuel cell electric vehicles requires either a dramatic reduction in the amount of platinum required or the replacement of platinum catalysts with those made of earth-abundant, inexpensive materials like iron.”

Argonne National Lab 2

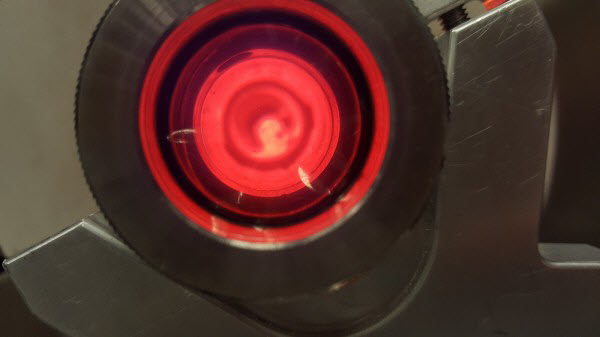

A look inside the furnace in which pyrolysis for the study took place. Credit Argonne National Laboratory

The most promising platinum-free catalyst for use in the ORR is based on iron, nitrogen and carbon. To produce the catalyst, scientists mix precursors containing the three elements and heat them between 900 and 1100 degrees Celsius in a process called pyrolysis.

After pyrolysis, the iron atoms in the material are bonded with four nitrogen atoms and imbedded in a plane of graphene, a one-atom thick layer of carbon. Each of the iron atoms constitutes an active site, or a site at which the ORR can occur. A greater density of active sites in the material makes the electrode more efficient.

“The mechanisms by which the active sites are formed during pyrolysis are still very mysterious,” said Myers. “We observed the process in real time at the atomic scale to gain understanding and to inform the design of better-performing catalysts.”

Myers and collaborators conducted in situ X-ray absorption spectroscopy at the Materials Research Collaborative Access Team (MR-CAT) at Argonne’s Advanced Photon Source (APS), a U.S. DOE Office of Science User Facility, to uncover the behavior of the material at the atomic scale during pyrolysis. They aimed an X-ray beam through the iron, nitrogen and carbon precursors and observed which elements chemically bonded to each other and how.

The scientists found that during the pyrolysis of the iron, nitrogen and carbon precursor mixture, the nitrogen-graphene sites are formed first, and then gaseous iron atoms insert themselves into these sites. They also found that they can produce a higher density of active sites in the catalyst by inserting nitrogen into the carbon first, using a technique called doping, and then introducing iron to the system during pyrolysis, as opposed to heating all three components together.

During this process, the scientists place the nitrogen-doped carbon in the furnace, and gaseous iron atoms insert themselves in vacancies at the center of groups of four nitrogen atoms, forming active sites. This approach avoids clustering and burial of iron atoms in the bulk of the carbon, increasing the number of active sites on the graphene surface.

The study was a part of a larger project funded by the DOE Fuel Cell Technologies Office, called the Electrocatalysis Consortium (ElectroCat), aimed specifically at driving development of platinum-free catalysts for fuel cells.

ElectroCat is led by Argonne and DOE’s Los Alamos National Laboratory and has members including DOE’s National Renewable Energy Laboratory and Oak Ridge National Laboratory. This study came out of a collaboration between ElectroCat and Northeastern University.

“Our mission as one of the core national laboratory members of ElectroCat is to not only develop our own catalysts in the consortium, but to support collaborations with universities and industry as well,” said Myers.

The conclusions of this study help close the knowledge gap between input precursors and the resulting structure of the catalyst after pyrolysis. The pivotal discovery gives scientists an avenue to increase the active site density in the material, and the group will continue to develop more active and stable platinum-free catalysts for use in hydrogen fuel cells.

A paper outlining the results of the study, titled “Evolution pathway from iron compounds to Fe1(II)−N4 sites through gas-phase iron during pyrolysis”, was published on December 27, 2019, in the Journal of the American Chemical Society.

ElectroCat is supported by the Department of Energy, Energy Efficiency and Renewable Energy, Fuel Cell Technologies Office. More information can be found on the ElectroCat website.

About the Advanced Photon Source
The U. S. Department of Energy Office of Science’s Advanced Photon Source (APS) at Argonne National Laboratory is one of the world’s most productive X-ray light source facilities. The APS provides high-brightness X-ray beams to a diverse community of researchers in materials science, chemistry, condensed matter physics, the life and environmental sciences, and applied research. These X-rays are ideally suited for explorations of materials and biological structures; elemental distribution; chemical, magnetic, electronic states; and a wide range of technologically important engineering systems from batteries to fuel injector sprays, all of which are the foundations of our nation’s economic, technological, and physical well-being. Each year, more than 5,000 researchers use the APS to produce over 2,000 publications detailing impactful discoveries, and solve more vital biological protein structures than users of any other X-ray light source research facility. APS scientists and engineers innovate technology that is at the heart of advancing accelerator and light-source operations. This includes the insertion devices that produce extreme-brightness X-rays prized by researchers, lenses that focus the X-rays down to a few nanometers, instrumentation that maximizes the way the X-rays interact with samples being studied, and software that gathers and manages the massive quantity of data resulting from discovery research at the APS.

This research used resources of the Advanced Photon Source, a U.S. DOE Office of Science User Facility operated for the DOE Office of Science by Argonne National Laboratory under Contract No. DE-AC02-06CH11357.

Argonne National Laboratory seeks solutions to pressing national problems in science and technology. The nation’s first national laboratory, Argonne conducts leading-edge basic and applied scientific research in virtually every scientific discipline. Argonne researchers work closely with researchers from hundreds of companies, universities, and federal, state and municipal agencies to help them solve their specific problems, advance America’s scientific leadership and prepare the nation for a better future. With employees from more than 60 nations, Argonne is managed by UChicago Argonne, LLC for the U.S. Department of Energy’s Office of Science.

The U.S. Department of Energy’s Office of Science is the single largest supporter of basic research in the physical sciences in the United States and is working to address some of the most pressing challenges of our time. For more information, visit https://energy.gov/science.
