- Water-splitting module a source of perpetual energy
‘Artificial leaf’ concept inspires Rice University research into solar-powered fuel production
HOUSTON — Rice University researchers have created an efficient, low-cost device that splits water to produce hydrogen fuel.
The platform developed by the Brown School of Engineering lab of Rice materials scientist Jun Lou integrates catalytic electrodes and perovskite solar cells that, when triggered by sunlight, produce electricity. The current flows to the catalysts that turn water into hydrogen and oxygen, with a sunlight-to-hydrogen efficiency as high as 6.7%.
This sort of catalysis isn’t new, but the lab packaged a perovskite layer and the electrodes into a single module that, when dropped into water and placed in sunlight, produces hydrogen with no further input.
The platform introduced by Lou, lead author and Rice postdoctoral fellow Jia Liang and their colleagues in the American Chemical Society journal ACS Nano is a self-sustaining producer of fuel that, they say, should be simple to produce in bulk.
“The concept is broadly similar to an artificial leaf,” Lou said. “What we have is an integrated module that turns sunlight into electricity that drives an electrochemical reaction. It utilizes water and sunlight to get chemical fuels.”
Perovskites are crystals with cubelike lattices that are known to harvest light. The most efficient perovskite solar cells produced so far achieve an efficiency above 25%, but the materials are expensive and tend to be stressed by light, humidity and heat.
“Jia has replaced the more expensive components, like platinum, in perovskite solar cells with alternatives like carbon,” Lou said. “That lowers the entry barrier for commercial adoption. Integrated devices like this are promising because they create a system that is sustainable. This does not require any external power to keep the module running.”

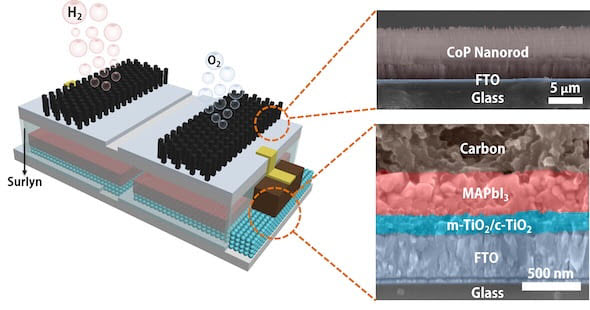

Liang said the key component may not be the perovskite but the polymer that encapsulates it, protecting the module and allowing to be immersed for long periods. “Others have developed catalytic systems that connect the solar cell outside the water to immersed electrodes with a wire,” he said. “We simplify the system by encapsulating the perovskite layer with a Surlyn (polymer) film.”
The patterned film allows sunlight to reach the solar cell while protecting it and serves as an insulator between the cells and the electrodes, Liang said.
“With a clever system design, you can potentially make a self-sustaining loop,” Lou said. “Even when there’s no sunlight, you can use stored energy in the form of chemical fuel. You can put the hydrogen and oxygen products in separate tanks and incorporate another module like a fuel cell to turn those fuels back into electricity.”
The researchers said they will continue to improve the encapsulation technique as well as the solar cells themselves to raise the efficiency of the modules.
Co-authors of the paper are former Rice visiting students Xiao Han, now an associate professor at Northwestern Polytechnical University in Xi’an, China, and Yunxiu Qiu, now a graduate student at Washington University in St. Louis; Rice graduate students Qiyi Fang and Boyu Zhang; Rice alumnus Weipeng Wang, now an assistant professor at Tsinghua University; Rice postdoctoral researcher Jing Zhang; and Pulickel Ajayan, chair of Rice’s Department of Materials Science and NanoEngineering, the Benjamin M. and Mary Greenwood Anderson Professor in Engineering and a professor of chemistry. Lou is a professor of materials science and nanoengineering and of chemistry.
The research was funded by the Peter M. and Ruth L. Nicholas Postdoctoral Fellowship in Nanotechnology from Rice’s Smalley-Curl Institute, the Welch Foundation, the National Science Foundation-backed Nanosystems Engineering Research Center for Nanotechnology-Enabled Water Treatment, and Fundamental Research Funds for the Central Universities, China.
- Jia Liang, Xiao Han, Yunxiu Qiu, Qiyi Fang, Boyu Zhang, Weipeng Wang, Jing Zhang, Pulickel M. Ajayan, Jun Lou. A Low-Cost and High-Efficiency Integrated Device toward Solar-Driven Water Splitting. ACS Nano, 2020; DOI: 10.1021/acsnano.9b09053
